Technical guide

Overall length 7.49 m
Overall body width 2.30 m
Overall height 2.94 m
Dinette seating 5
Berths 4/5 optional
Standard base 2.3 L, 130 hp
 Fiscal power 8 hp
MAM light chassis in kg/GTWR in kg with NOTIN approved trailer coupling*** 3500/5500
 MAM light chassis in kg/GTWR in kg with NOTIN approved trailer coupling*** 3650/4620
Authorised seating capacity (vehicle registration document) 4
Kerb weight in kg* 3180
Fresh water capacity above 0°C 140 L/30 L
Waste water capacity above 0°C 110 L
Approved diesel capacity 60 L

* Weight including 75 kg driver, approved full fuel and water loads, 1 gas bottle (+/-5%); all optional items to be deducted from the remaining payload
** Approved water capacity on the road
*** Deduct 1 from the authorised seating capacity if trailer coupling

camping-car neuf intégral notin calvia cl

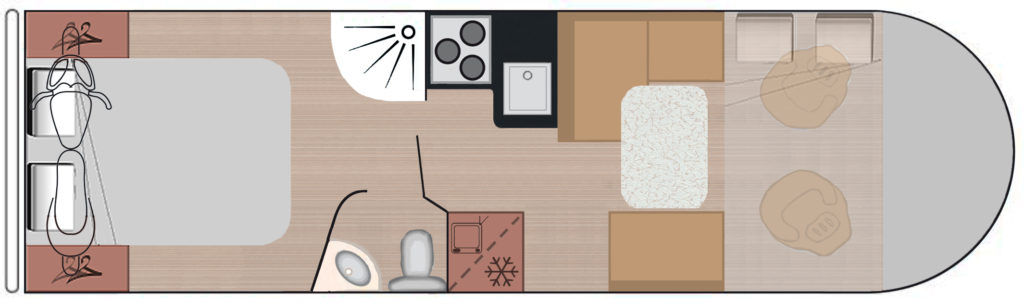

Layout
