Technical guide

Overall length 7.49 m
Overall body width 2.30 m
Overall height 2.89 m
Dinette seating 5
Berths 4/5 optional
Standard base 2.3 L 130 hp
Fiscal power 8 hp
MAM light chassis in kg/GTWR in kg with NOTIN approved trailer coupling*** 3500/5500
MAM light chassis in kg/GTWR in kg with NOTIN approved trailer coupling*** 3650/4650
Authorised seating capacity (vehicle registration document) 4/5 optional in 3650 Kg model
Kerb weight in kg* 3210
Fresh water capacity above 0°C 120 L/30 L**
Waste water capacity above 0°C 110 L
Approved diesel capacity 60 L

* Weight including 75 kg driver, approved full fuel and water loads, 1 gas bottle (+/-5%); all optional items to be deducted from the remaining payload
** Approved water capacity on the road
*** Deduct 1 from the authorised seating capacity if trailer coupling

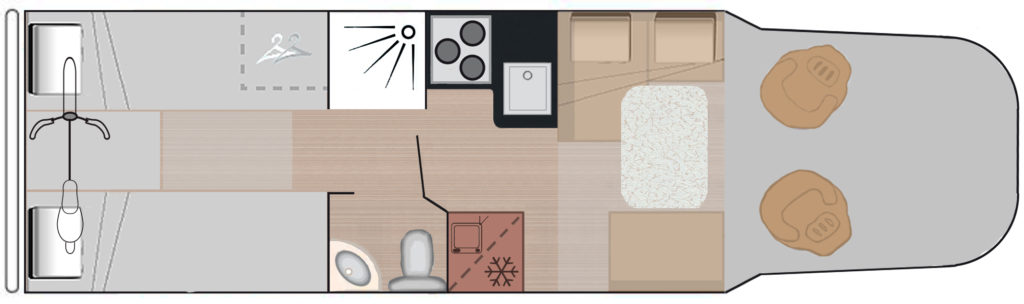

Layout
